FAST HINGE
Hinge Template Kit
Hinge Template Kit
Details
Details
- Materials: High-quality compact laminate
- Dimensions: Overall kit size 600x220x100mm
- Weight: 3.6kg
- Compatibility: Works with any router that can take a 1/4 shank router bit
Features
Features
Hinge sizes:
- 85mm x 60mm
- 100mm x 75mm, 100mm x 100mm
Versatile Application: Perfect for doors of any height and up to 63mm thick, including rebated and non-rebated door frames and jambs.
Precision Installation: Built-in door gap of 3mm, backset difference of 2mm, and set-out distance of 200mm ensure precise hinge placement every time.
User-Friendly Design: Ideal for professional use, these templates streamline the installation process, ensuring consistent, high-quality results.
Protective Offset Design: Features a 2mm offset cutting design, ensuring the templates remain intact and reusable after each use.
Whats Included
Whats Included
- 85mm door hinge template
- 100mm door hinge template
- 1/4 inch shank router bit
- User guide
- Storage bag
 Upgrade your hinge installations with the Fast Hinge Template Kit, a premier Hinge Template Set designed for 85mm and 100mm hinges. Engineered specifically for professional carpenters and builders in Australia and New Zealand, this Hinge Mortising Template delivers precision on doors of any height and works seamlessly with both rebated and non-rebated door frames and jambs. Simplify your workflow and achieve flawless results with our robust Door Hinge Jig.
Why Choose Fast Hinge Template Kit?
For professional carpenters and builders in Australia and New Zealand, the Fast Hinge Template Kit stands as the pinnacle of precision and durability. It is meticulously designed to meet the highest industry standards, ensuring flawless hinge installations every time. Its robust construction, user-friendly design, and comprehensive features make it the best Door Hinge Jig on the market, eliminating the frustrations of misaligned hinges and enhancing your workflow efficiency.
How to use Hinge Template Kit
STEPÂ ONE
- Mark edge of the door at the top.
- Place the template on the door. Flush it up with the top on door side of the template.
- Mark the top of the hinge.
- Slide the template to the bottom of the door and make flush and mark the top of the hinge.
 Â
STEP TWO

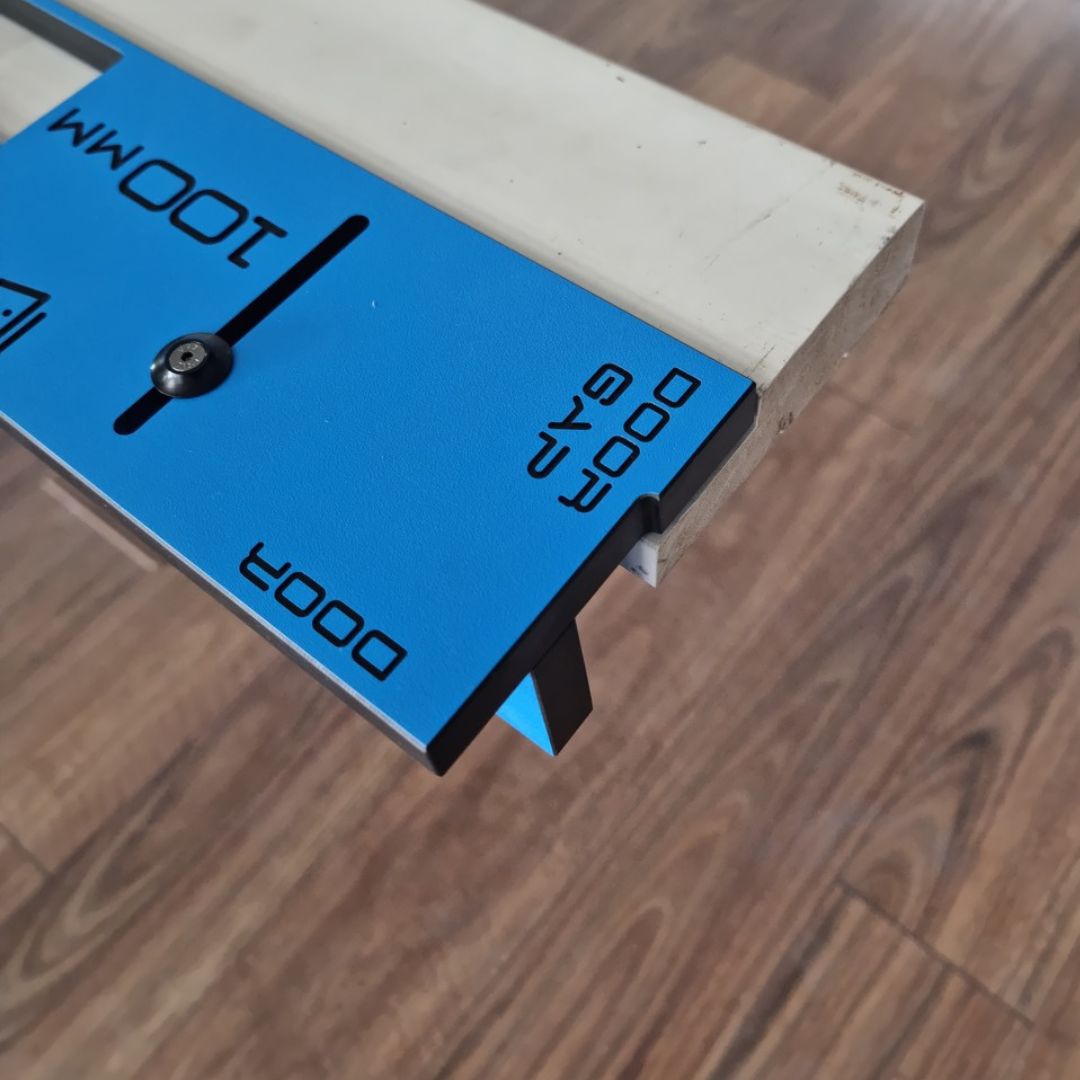

- Place the template on the top of the jamb stile.
- Mark the top of the hinge.
- Place jamb stile on top of the door and line up both top hinge marks and mark top of the bottom hinge off the door.
STEP THREE
- Clamp the jig to the door and jamb while lining up the template with the top of hinge marks.
- Set router bit to hinge depth ( hinge thickness+15mm) and cut out with electric router while using the correct PPE.
Hang your next door faster with Fast Hinge!
We Have Answers
What is a door hinge template used for?
A door hinge template is used to create precise recesses for door hinges, ensuring a perfect fit and professional finish.
Do these hinge jigs work on rebated door jambs?
Yes, Our hinge templates were design to work on doors, rebated and non rebated door jambs without any adjustment to the router.
What routers are compatible with this kit?
Our templates are compatible with any brand of hand held wood router that can accept a 1/4 shank router bit.
How do you use a door hinge template?
Using a door hinge template involves positioning the template on the door or jamb, securing it in place, and using a router with the provided bit to cut out the hinge recess.
What size router bit is needed for a door hinge template?
The Fast Hinge Template Kit includes a 1/4 inch shank router bit, which is ideal for cutting out hinge recesses.
