Hinge Template Kit Australia
- Materials: High-quality compact laminate
- Dimensions: Overall kit size 600x220x100mm
- Weight: 3.6kg
- Compatibility: Works with any router that can take a 1/4 shank router bit

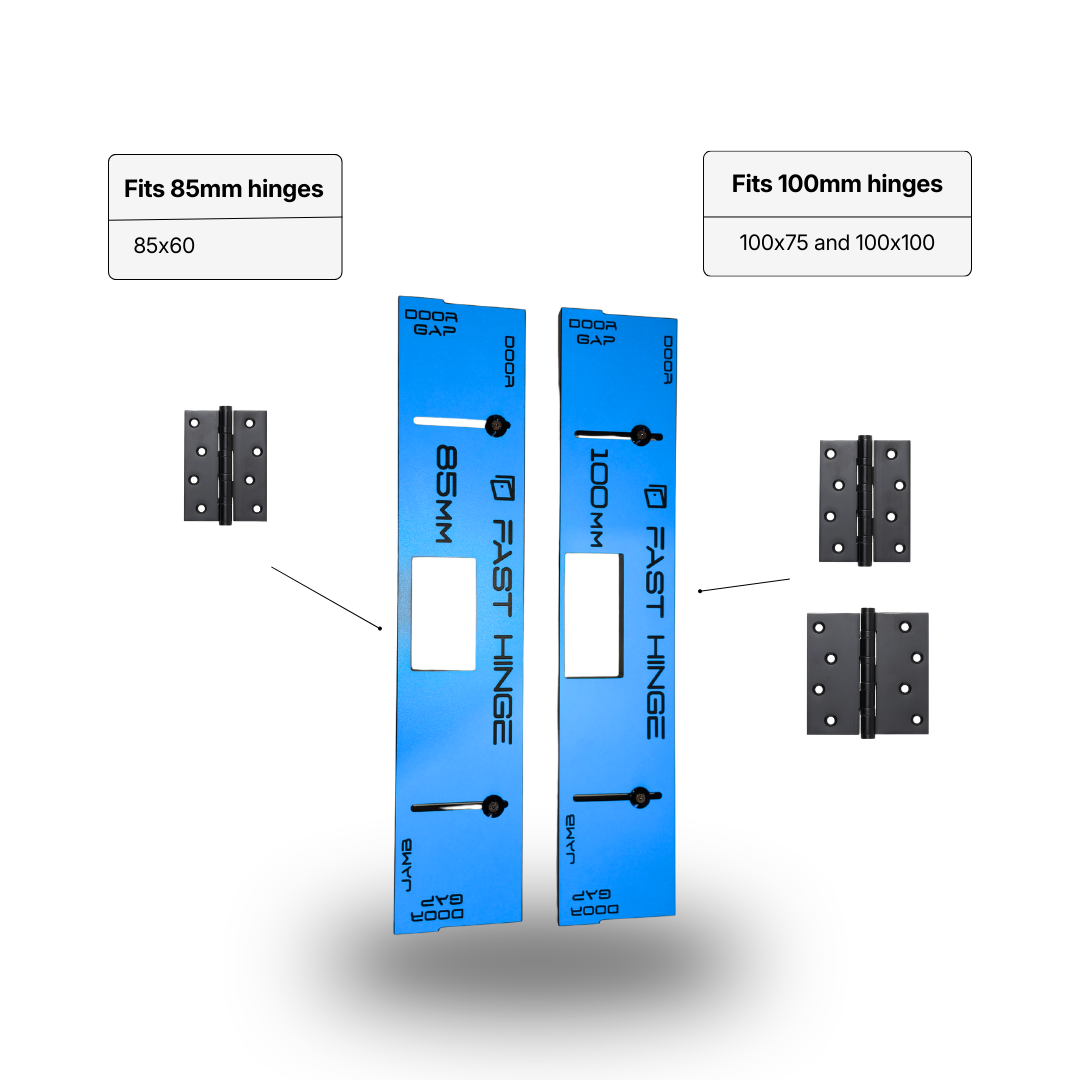

Hinge sizes:
- 85mm x 60mm
- 100mm x 75mm, 100mm x 100mm

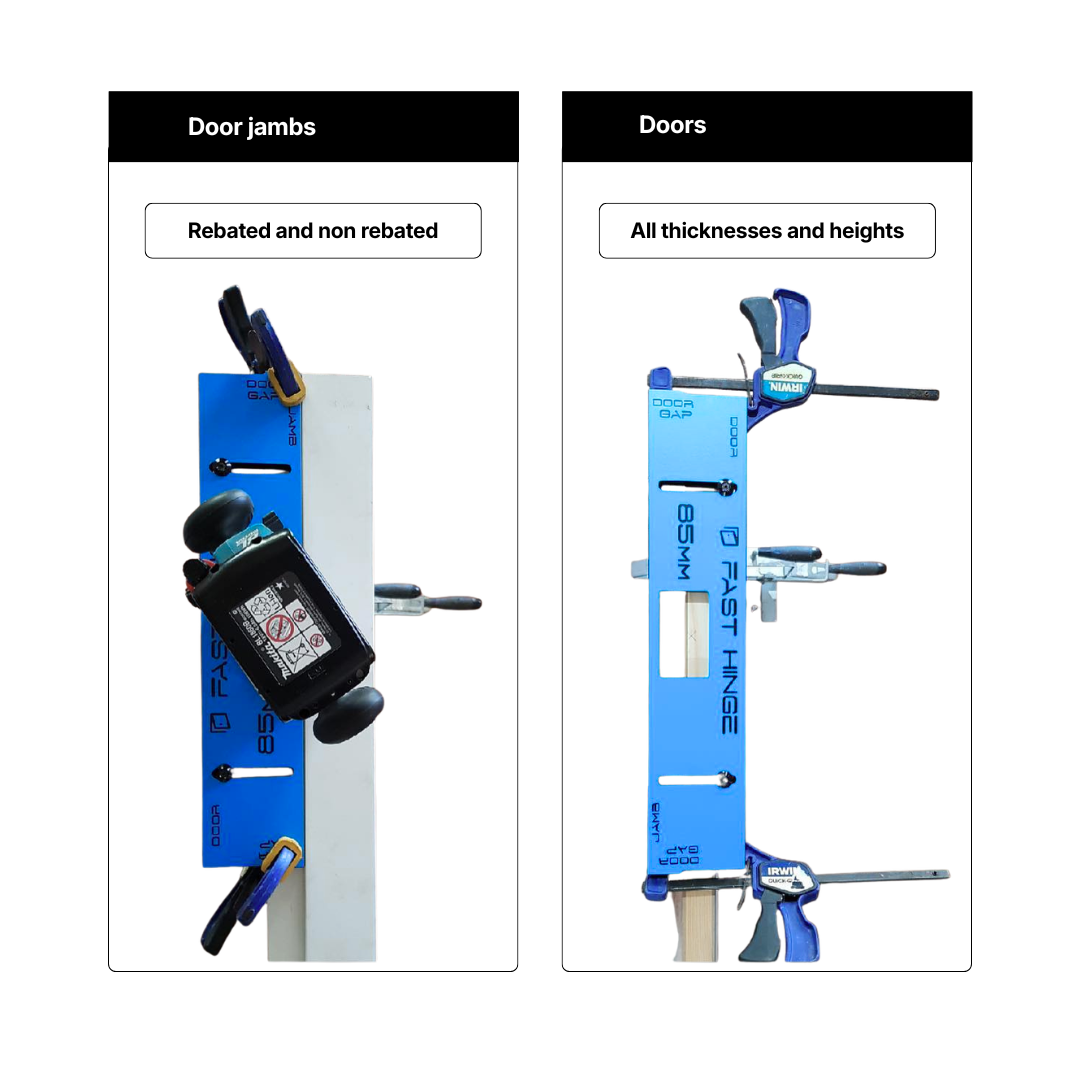

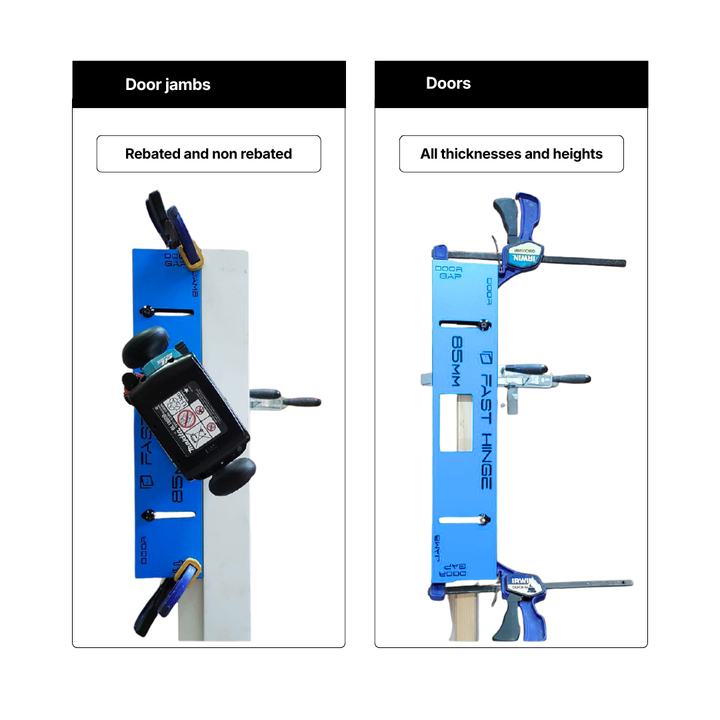

Versatile Application: Perfect for doors of any height and up to 63mm thick, including rebated and non-rebated door frames and jambs.
Precision Installation: Built-in door gap of 3mm, backset difference of 2mm, and set-out distance of 200mm ensure precise hinge placement every time.
User-Friendly Design: Ideal for professional use, these templates streamline the installation process, ensuring consistent, high-quality results.

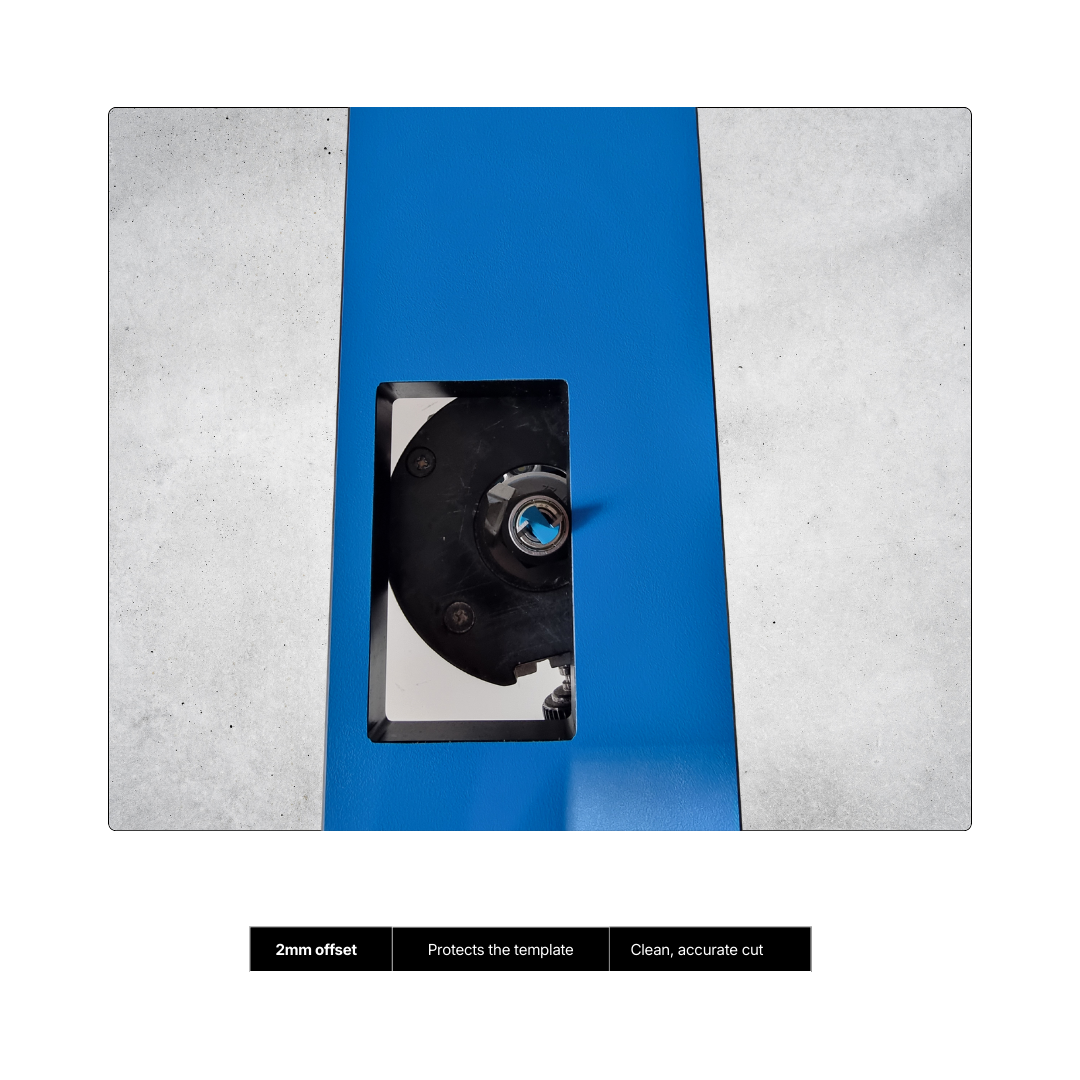

Protective Offset Design: Features a 2mm offset cutting design, ensuring the templates remain intact and reusable after each use.

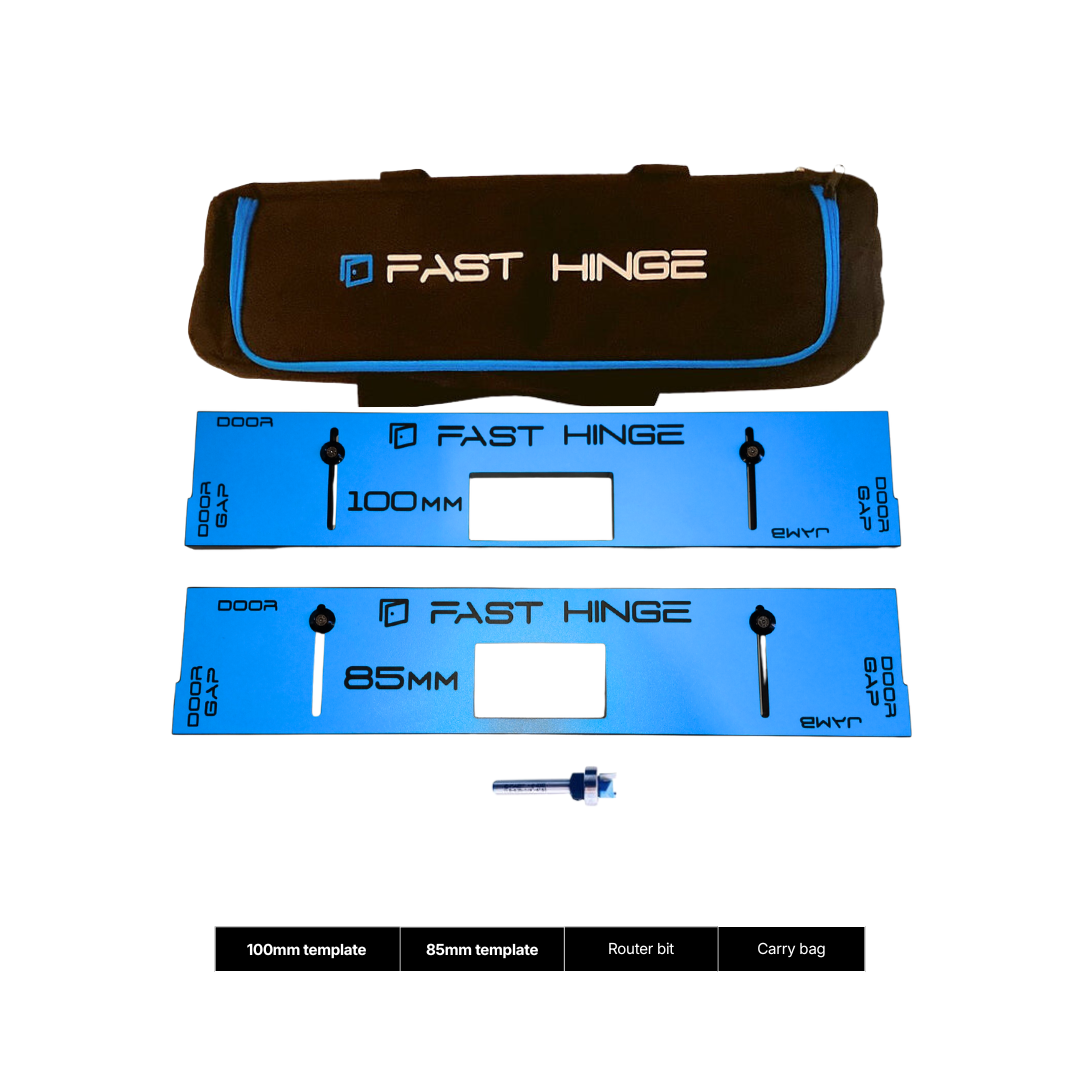

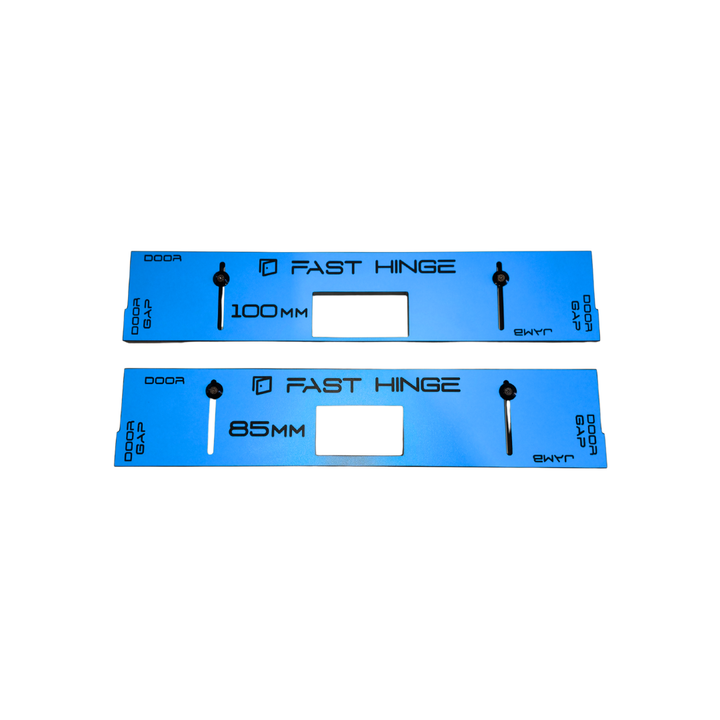

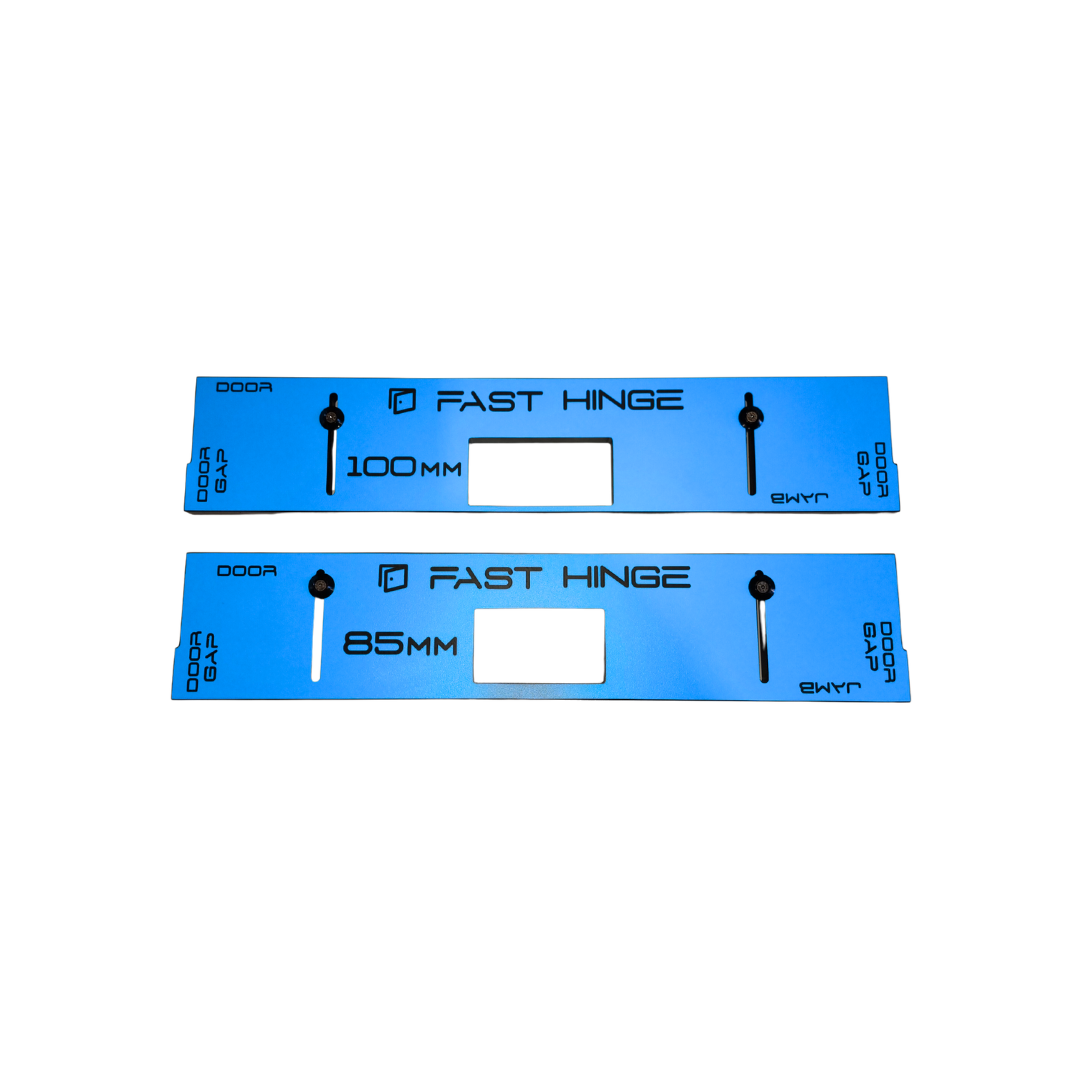

- 85mm door hinge template
- 100mm door hinge template
- 1/4 inch shank router bit
- User guide
- Storage bag
Upgrade your hinge installations with the Fast Hinge Template Kit, a premier Hinge Template Set designed for 85mm and 100mm hinges. Engineered specifically for professional carpenters and builders in Australia and New Zealand, this Hinge Mortising Template delivers precision on doors of any height and works seamlessly with both rebated and non-rebated door frames and jambs. Simplify your workflow and achieve flawless results with our robust Door Hinge Jig.
Why Choose Fast Hinge Template Kit Australia?
For professional carpenters and builders in Australia and New Zealand, the Fast Hinge Template Kit Australia stands as the pinnacle of precision and durability. It is meticulously designed to meet the highest industry standards, ensuring flawless hinge installations every time. Its robust construction, user-friendly design, and comprehensive features make it the best Door Hinge Jig Australia on the market, eliminating the frustrations of misaligned hinges and enhancing your workflow efficiency.
How to use Hinge Template Kit
STEP ONE
- Mark edge of the door at the top.
- Place the template on the door. Flush it up with the top on door side of the template.
- Mark the top of the hinge.
- Slide the template to the bottom of the door and make flush and mark the top of the hinge.
STEP TWO
- Place the template on the top of the jamb stile.
- Mark the top of the hinge.
- Place jamb stile on top of the door and line up both top hinge marks and mark top of the bottom hinge off the door.
STEP THREE

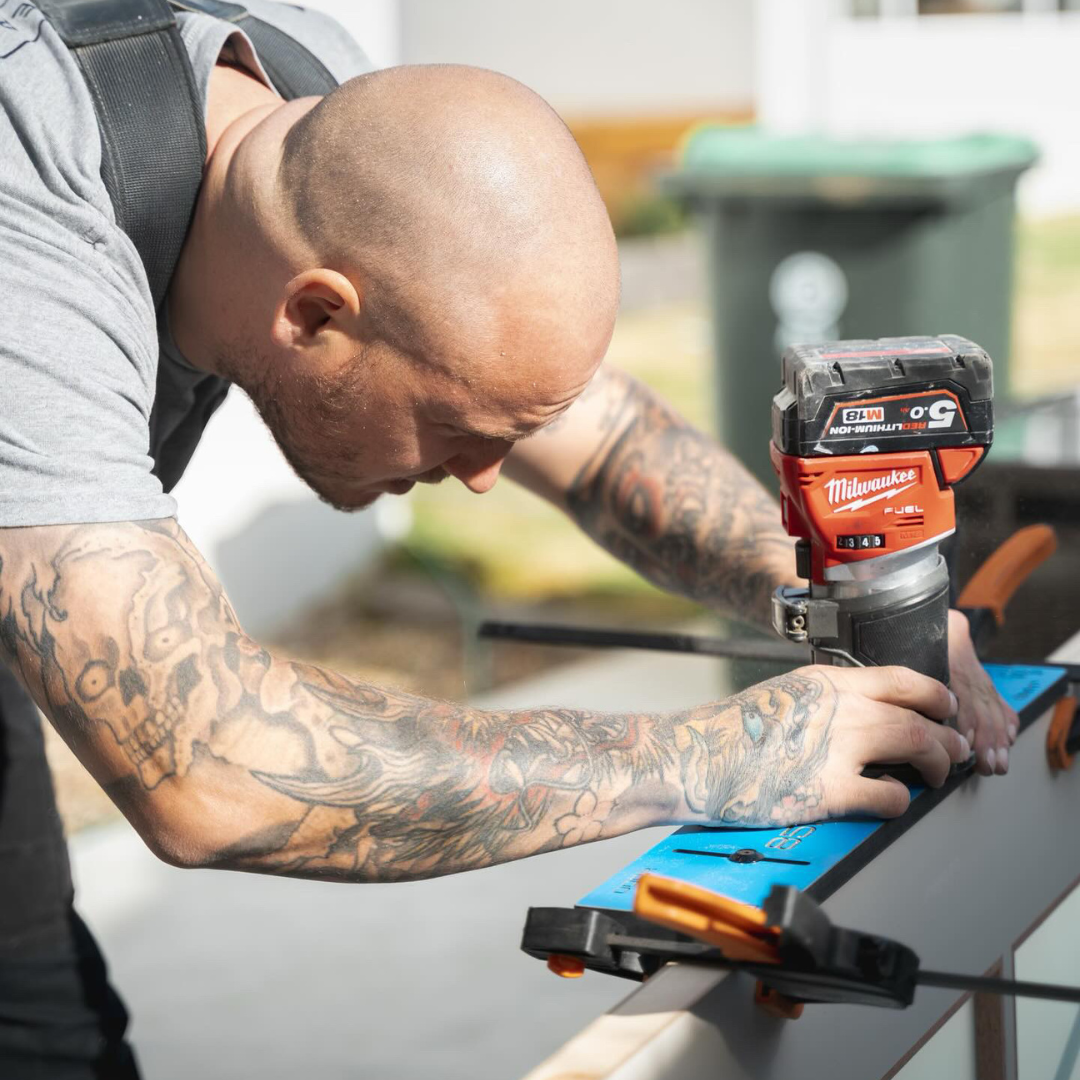

- Clamp the jig to the door and jamb while lining up the template with the top of hinge marks.
- Set router bit to hinge depth ( hinge thickness+15mm) and cut out with electric router while using the correct PPE.
